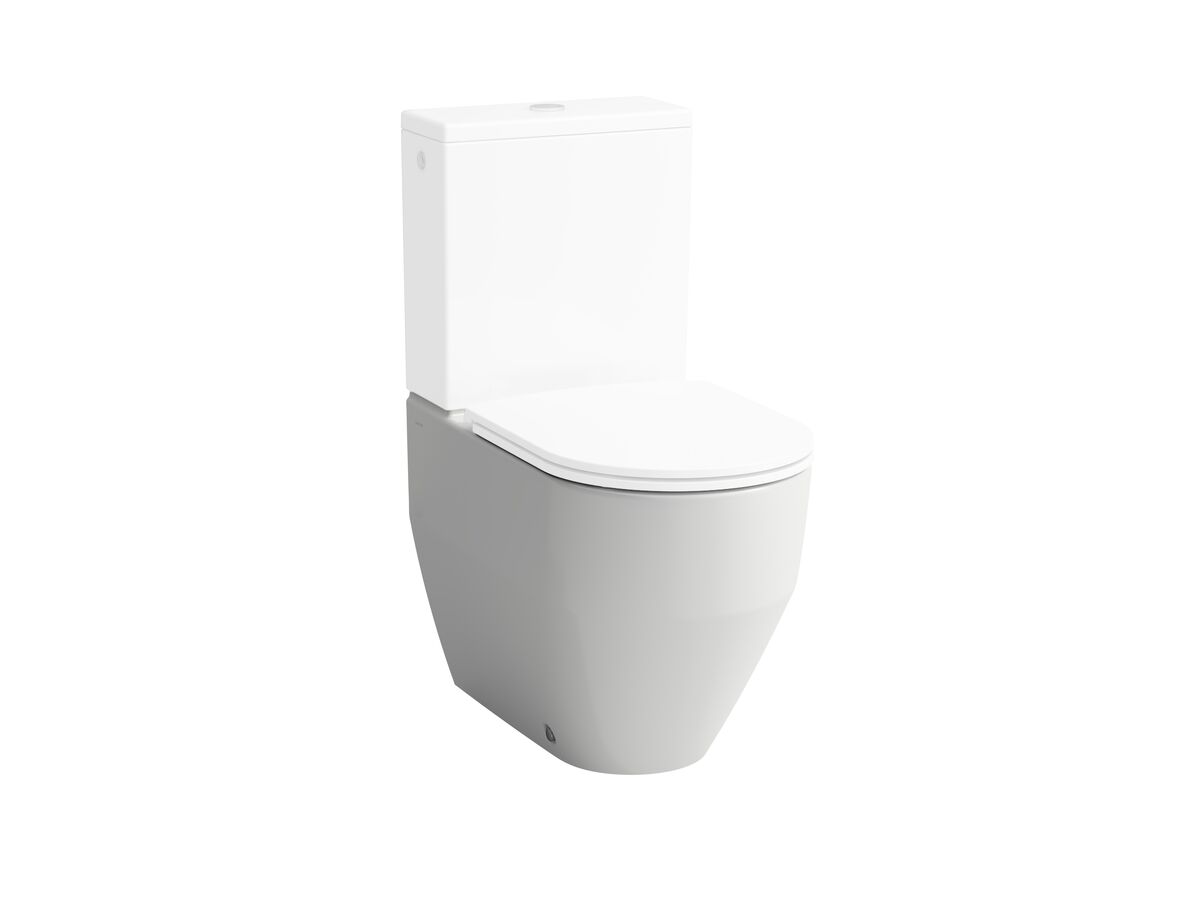

LAUFEN Pro A Rimless Close Coupled Back To Wall Pan (4 Star)
Product code: 9509868
Product Specifications
| Recommended Use | Commercial, Domestic & Hotel |
|---|---|
| Toilet Configuration | Back to Wall & Close Coupled |
| Rim Configuration | Rimless |
| Mounting | Floor |
| Pan Outlet Type | S Trap with Supplied Conversion Bend |
| Water Inlet Position | Back |
| Colour Category | White |
| Colour Finish | White |
| Primary Material | Vitreous China |
| Pan Material | Vitreous China |
| Width | 360 mm |
| Pan Height | 430 mm |
| Pan Projection | 650 mm |
| Pan Width | 360 mm |
| P Trap Setout | 185 mm |
| S Trap Minimum Setout | 120 mm |
| S Trap Maximum Setout | 220 mm |
| Weight of Pan | 38 kg |
| Cistern Included | false |
| WELS Registration Number | L06867 |
| Water Efficiency Star Rating | 4 Star |
| Average Litres per Flush | 3.1 L |
| Full Flush | 4.3 L |
| Half Flush | 2.8 L |
| Domestic Use | 15 Years |
|---|---|
| Commercial Use | 1 Years |
| Spare Parts & Labour | 1 Years |
| Warranty Information | For full warranty terms and conditions please refer to the LAUFEN Warranty document |
Specification, Manuals & Installation
2D/3D Models
At the heart of Swiss bathroom culture since 1892, the LAUFEN name is synonymous with beauty, craftsmanship and perfection of form - qualities that continue to define LAUFEN as one of the world's most desired bathroom brands. Partnering with outstanding architects and designers, LAUFEN creates bathroom products that express emotion, purity and harmony, while continually pushing the limits of technical possibility to create ground-breaking new ideas expressed through ceramics.
