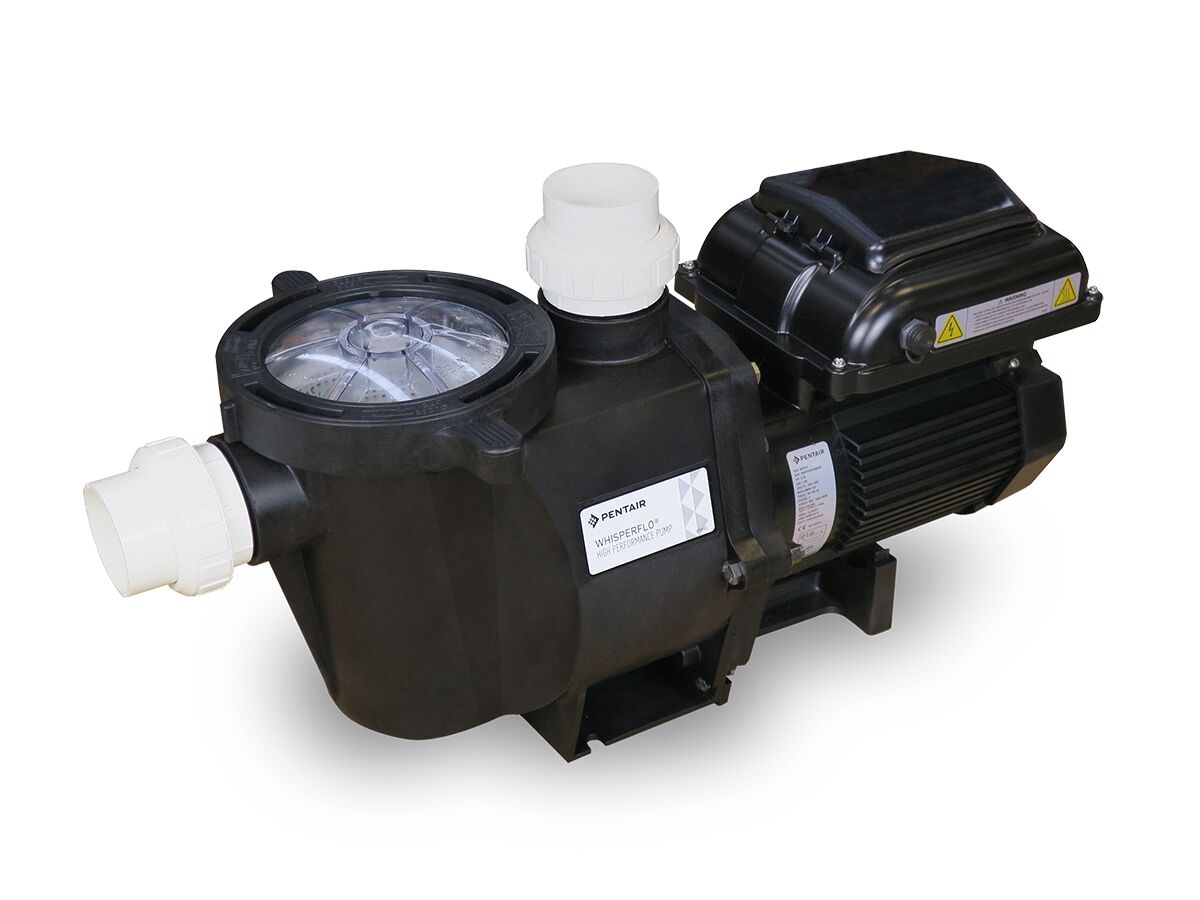

Pentair WhisperFlo VS 1500 2HP Pool Pump

Product code: 1537741

Pentair WhisperFlo

Variable speed pump, with up to 4 programmable speeds, allows you to effortlessly select the most efficient setting to meet your filtration, cleaning and water feature needs

Size and Dimensions

Length	618 mm
Width	275 mm
Height	325 mm

Features

	4 speed variable control
	Brushless, permanent magnet motors deliver high efficiency, low noise levels and servicability.
	The Cam and Ramp lid is easy to remove, making inspection and cleaning a breeze.
	Quick-disconnect plumbing unions.

General Information

Model Number	WHFL-1500-VS
Product Type	Variable Speed Pool Pump

Technical Information

Motor Type	Axial flux, permanent magnet
IP Rating	IPX6
Nominal Flow Rate	500lpm @8m @3150 RPM
Pump Inlet Size	50mm Barrel Union
Pump Outlet Size	50mm Barrel Union
Revolutions Per Minute (RPM)	Low 1400 - Med 2200 - High 3000 - Override 3150
Supply Frequency	50HZ, single phase

Temperature Information

Maximum Ambient Temperature	55 deg C
Maximum Water Temperature	40 deg C

Power Information

Current (A)	Low 1.0A - Med 3.2A - High 7.4A - Override 8.6A
Motor Input Power	Low 216W - Med 700W - High 1700W - Override 1970W
Motor Output Power	Low 175W - Med 560W - High 1360W - Override 1575W
Power Supply	DC
Voltage	230-240V

Warranty

Product Warranty	3 Years

Learn about our Product Quality Guarantee

Brochure - Pentair WhisperFlo VS View

Owner's Manual - Pentair WhisperFlo VS-1500 View
