Stylus Dorado Wall Faced Close Coupled Bottom Inlet Toilet Suite with Waldorf Soft Close Seat White (4 Star) from Reece

Features	Universal trap for S or P trap installations
Toilet Configuration	Back to Wall & Close Coupled
Model Number	830610W
Mounting	Floor
Seat Type	Soft Close
Water Inlet Position	Bottom
Seat Colour	White

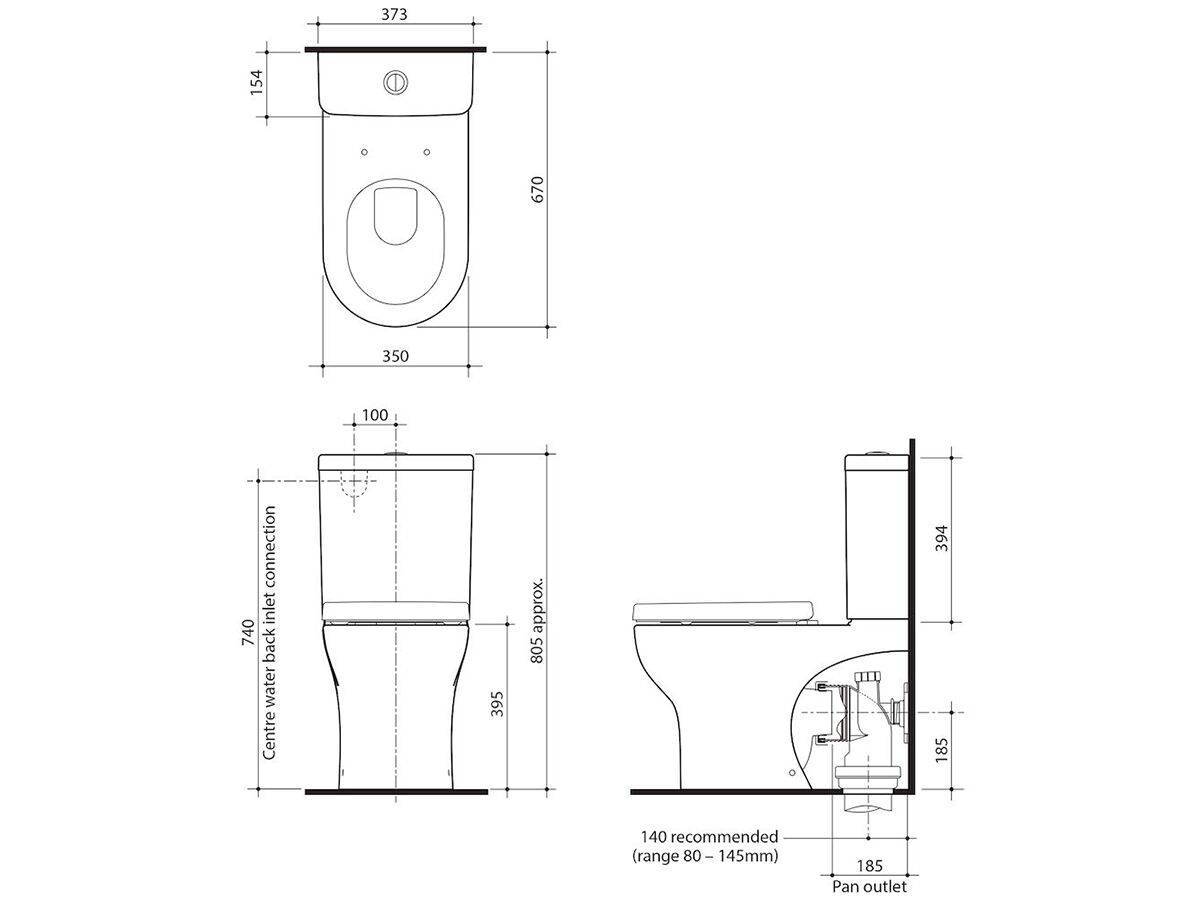

Pan Height	395 mm
Pan Projection	670 mm
Pan Width	350 mm
P Trap Setout	185 mm
S Trap Minimum Setout	80 mm
S Trap Maximum Setout	145 mm
Cistern Included	Yes
Seat Included	Yes
WELS Registration Number	L04449
Water Efficiency Star Rating	4 Star
Average Litres per Flush	3.3 L
Full Flush	4.5 L
Half Flush	3 L
